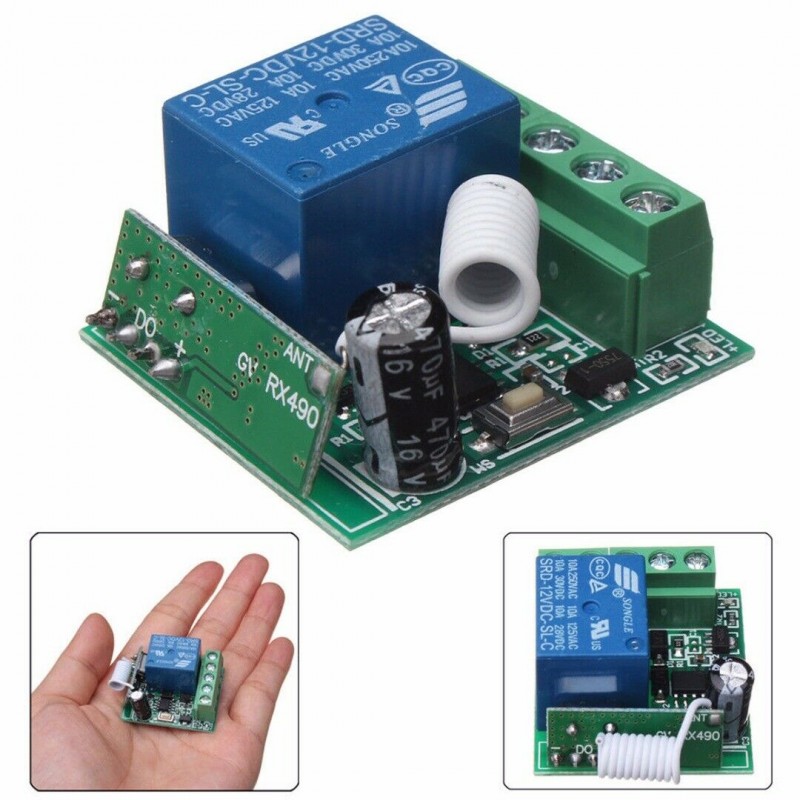

ricevitore rf 433mhz con relè controllo remoto a distanza wireless

ricevitore autoapprendente per tutti i telecomandi a 433mhz, grazie al pulsante di autoapprendimento, potrete facilmente abbinare il vostro telecomando.

alimentazione 10/14 vdc

portata relè 10 A

assorbimento scheda a riposo meno di 5mA

Può lavorare sia in modalità monostabile (impulsiva) che bistabile (interruttore) che interlacciata (un tasto chiude il circuito, un altro tasto lo apre).

Specification:

• Brand new

• Size: approx. 35*30*16mm

• Input Voltage: DC10-14V

• Working Voltage: DC12V

• Output Current: 10A

• Rated load: 10A 250V AC / 10A 125V AC; 10A 30V DC / 10A 28V DC

• Standby Current: ＜5MA

• RF Frequency: 433MHZ

• RF Working mode: Super heterodyne receiver

• Receiver Sensitivity: >90dBm

• Remote Control Distance: >100 meter(In open environment)

• Decoding Way: MCU Software decoding

• Can store the number of remote control: 50

• Support remote control type: Fixed code, learning code

• Channel: 1CH

• Wiring Method: Fixed wiring terminal

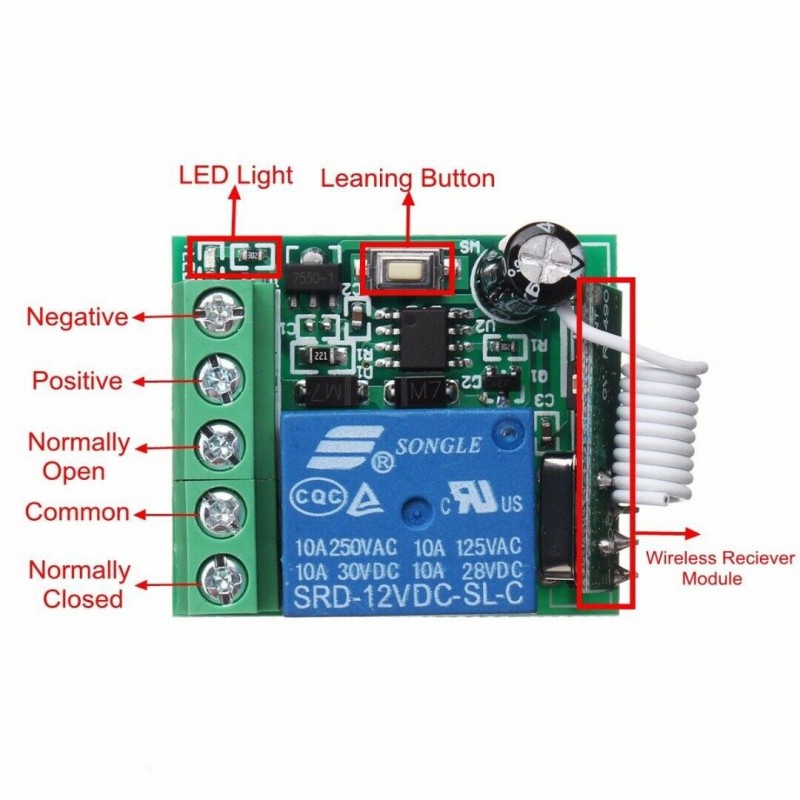

• Output: Normally open/Common/Normally closed

• Fine workmanship and good performance

• • Stable and reliable.

  • Durable in use.

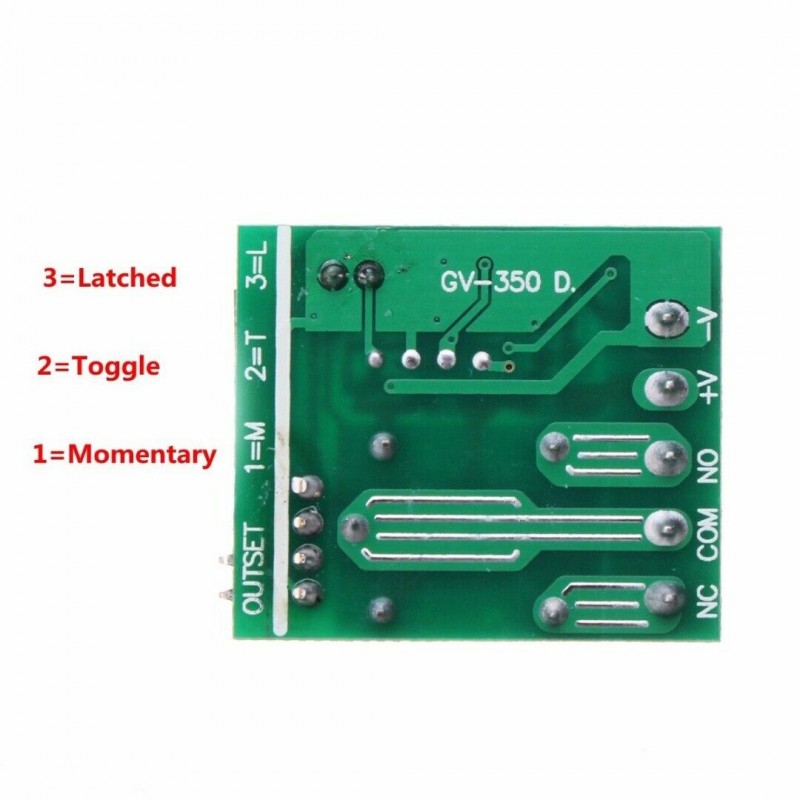

  Working/Output Way:

  • 1. Jog/Non-Latched: Press one button is Working /ON. Loosen your finger on the same button is Stop/OFF. One channel switch need one buttons remote control.

  • 2. Self -lock/Self-Latched: Press one button for one time is working/ON. Press the same button again is stop/OFF. One channel switch need one buttons remote control.

  • 3. Inter-lock /Latched: Press one button is working/ON, press another button is stop/OFF. One channel switch need 2 buttons remote control.

  • 4. Delay: Press remote control relay pull-in, release the remote control and begin timekeeping, after 5s, 10s, 15s will automatically close the relay.



  Usage:

  • 1. Press the learning code and the indicator flash, then loosen your finger, press any button of the remote control the indicator flash 2 times and off. It means that you learn it successfully.

  • 2. It can learn more than 12 PCS 2262 or 1527 chip with the different code wireless 433MHz remote control.

  • 3. Remove/Clean: press the learning button about 8 seconds, the indicator turn on to off, it means the information that you keep have been removed successfully
