RADIOC1CHMINI
Nuovo
kit radiocomando universale per controllo a distanza, 1 canale, potrete comandare a distanza qualsiasi cosa, accendere spegnere luci, far girare motori, aprire tapparelle, aprire porte, aprire serrande ecc
0 Articolo Articoli
Questo prodotto non è più disponibile
Attenzione: Ultimi articoli in magazzino!
Disponibile dal:
kit radiocomando 1 canale mod mini 4/12v 433mhz
kit radiocomando universale per controllo a distanza, 1 canale, potrete comandare a distanza qualsiasi cosa, accendere spegnere luci, far girare motori, aprire tapparelle, aprire porte, aprire serrande ecc
Destinatario :
* Campi richiesti
o Annulla
Descrizione
Controllo remoto wireless
ottimo kit radio con il quale potrete gestire a distanza, tramite la pressione del tasto del telecomando qualsiasi carico, potrete accendere e spegnere luci, aprire e chiudere porte, aprire e chiudere serrande, come abbinamento a sistemi di emergenza come allarmi, sistemi per disabili o anziani ecc.
tensione di alimentazione del ricevitore da un minimo di 4v ad un massimo di 12v in corrente continua, potrete usare delle batterie, ad esempio un portabatterie oppure mandarlo in corrente coon un trasformatore.

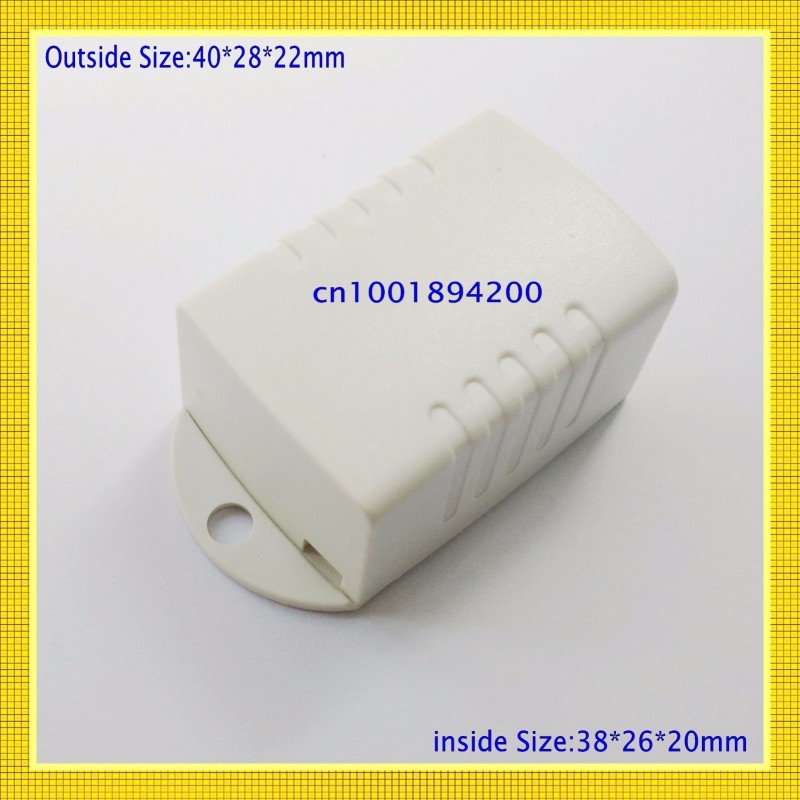

il ricevitore ha una scatoletta in plastica che lo racchiude e protegge!

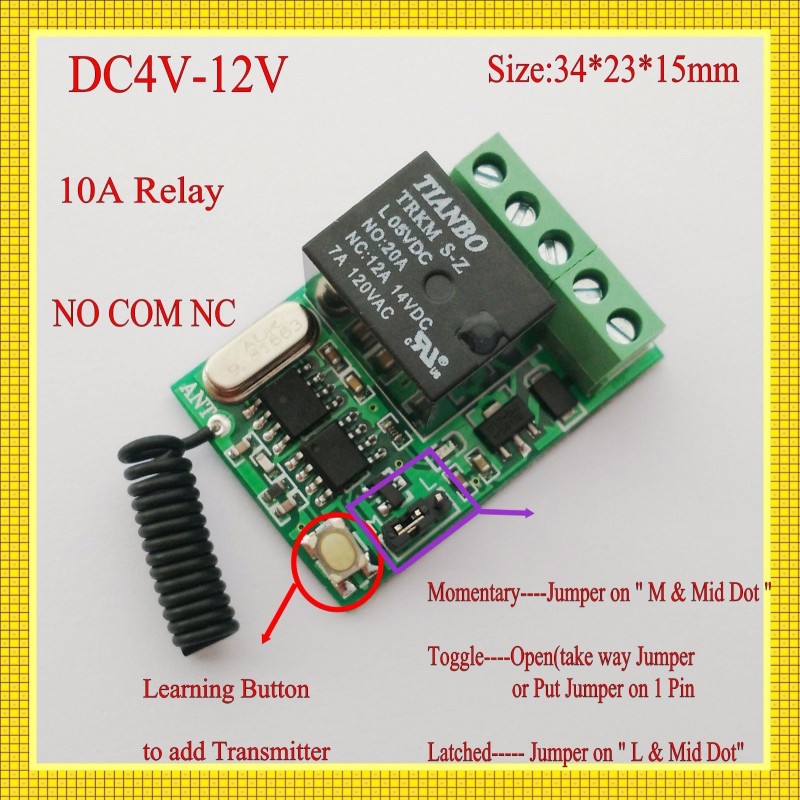

modalità di uscità monostabile, bistabile o interlacciata a scelta tramite ponticello.
Grazie al relè in uscita è possibile collegare carichi fino a 10A, sia in corrente continua che alternata.
tasto per autoapprendimento telecomandi (433 mhz).
Specifiche tecniche:
Working Voltage: DC4V-12V
(DC4V 4.2V 4.5V 5V 6V 7.4V 9V 12V) All is ok
Quiescent /Standby Current: 7-9ma
Working Current: 70-130ma
Max Load: 10A (have better load less than 7A)
Size : 34*23*15mm
Working Frequency: 433.92MHZ Optional by leaving massage
Learning Code: Learning Button to add Transmitter
Working Mode: Momentary Toggle Latched adjusted by Jumper
Momentary----- Press and Hold---ON, Release----OFF
Toggle-------Press one time ----ON. Press it again ----OFF
Latched--------Press A ----ON, Press B-----OFF
GND-------------------Input GND –
VCC-------------------Input VCC +
NC---------------------Normally Close
COM------------------Common
NO---------------------Normally Open
Clearing Code
Press the Receiver learning button and hold for about 5s until the Receiver LED indicator from ON to OFF, it means the code have been cleared
Learning Code
Momentary/Toggle Mode
Press the Receiver learning button, the Receiver LED indicator flash slowly, it means entering into learning state, press the transmitter Button, the receiver LED indicator flash fast for 2 times and then flash slowly, it means learning is successful. Press the learning button again to turn off the LED indicator, it means learning is finished.
Latched Mode
Press the Receiver learning button, the Receiver LED indicator flash slowly, it means entering into learning state, press the transmitter A Button, the receiver LED indicator flash fast for 2 times, then Press B Button, the receiver LED indicator flash fast for 2 times, and then the Receiver LED indicator turn off itself, it means learning is finished.
Attenzione il telecomando non è incluso, ma lo puoi trovare nel sito.
Incluso ricevitore radio e box in plastica.
